TPPGS Mechanical Bar Screen
Price:Non - standard customized
Package: Wooden box
Place of Origin:China
Minimum order quantity:1 Set

Product Introduction

TPPGS series Mechanical Bar Screen (grille cleaner) is a device that can continuously and automatically remove various impurities in fluids for solid-liquid separation. It can be widely used as a specific equipment in municipal sewage treatment, tap water industry, power plant water inlet, can also be used in textile, food processing, paper making, leather and other industries. It is the most advanced solid-liquid separation equipment in China

Working Principle

When the rake chain runs to the upper part of the equipment, due to the guiding of the sheave and the curved rail, a relative self-cleaning is generated between each set of rakes, and most of the solid falls by gravity. The other part relies on the reverse movement of the cleaner to clean the impurities sticking to the rakes.


1.Advantages: high degree of automation, high separation efficiency, low power consumption, no noise, good corrosion resistance;

2.Work continuously and stably under unattended operation. Overload safety protection device is set. When the equipment fails, an audible and visual alarm will be generated and the machine automatically stop, which can avoid overloading the equipment.

3.It can adjust the machine running interval according to user's needs to achieve periodic operation; it can be automatically controlled according to the liquid level difference before and after the screen; and there is manual control function to facilitate maintenance. Users can choose the control type according to different work needs.

4.Low maintenance of the machine,strong self-cleaning and non-blocking capability.

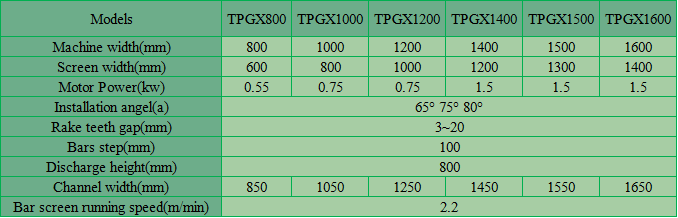

*Above parameters only for reference, customized available for detailed requirements
