Arc vibrating screen
Module Number:
Brand Name:  TOP
Origin:  China
Unit Price:  Non - standard customized
Minimun Number:  1set

Product Introduction

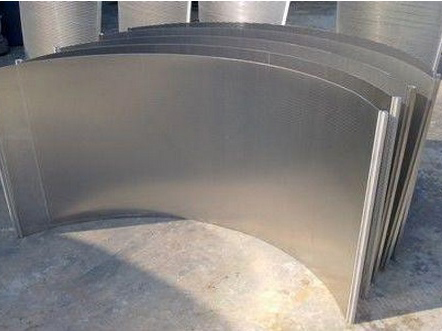

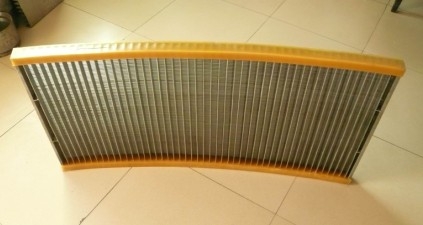

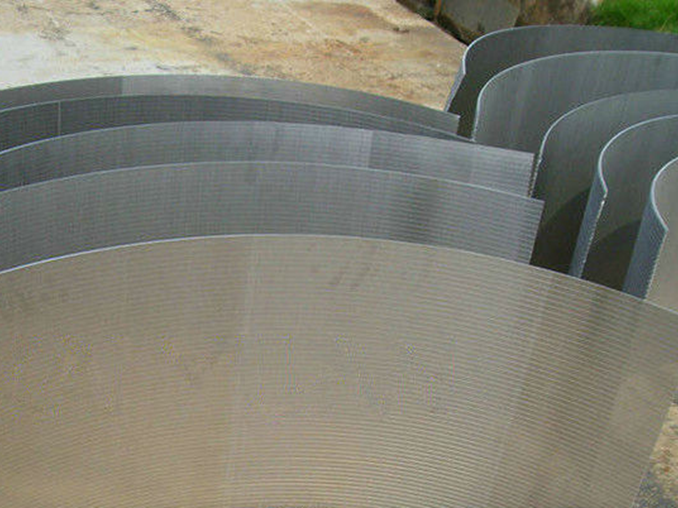

Arc vibrating screen(sieve bend) is a certain curvature radius and angle of slotted screen. As required, it can be made of different radii and different angles. Common angle 45 °, 60 °, 90 °, 180 ° and 270°




Stainless Steel SS304,304L, 316, 316L, 2205 Austenitic stainless steel, Hastelloy, etc.



1. Full model, full specifications, meet the requirements of different industries and screening requirements;

2. Easy penetration, wear, corrosion resistance, low operating cost;

3. Accurate processing size, time-saving installation , labor-saving;

4. The support rod welded by automated equipment, excellent quality, high aperture ratio, long life, high strength and stiffness,high load capacity;

5. V-type or T-type wire,the filter area is smaller than the production area ,increasing the backwashing, and reducing clogging;

6. Uniform screen slot , smooth surface , high permeability, screen slot reach to 15 microns.

7. Firm welding spot, flat surface, solid structure, strong integrity, without loosing and distortion even if the partial cutting or under partial pressure


Mainly used for coal preparation and ore dressing plant on the material dehydration, desliming, medium draining and classification & Recycling of coal slime.Also work with water cyclone supporting the classification, dehydration, desliming,medium draining of the fine materials. In the paper industry applications:Whitewater fiber recycling, pulp condensation, spray water and seal water purification,the length of fiber grading, fiber / filler separation, white water filtration and sewage treatment.
